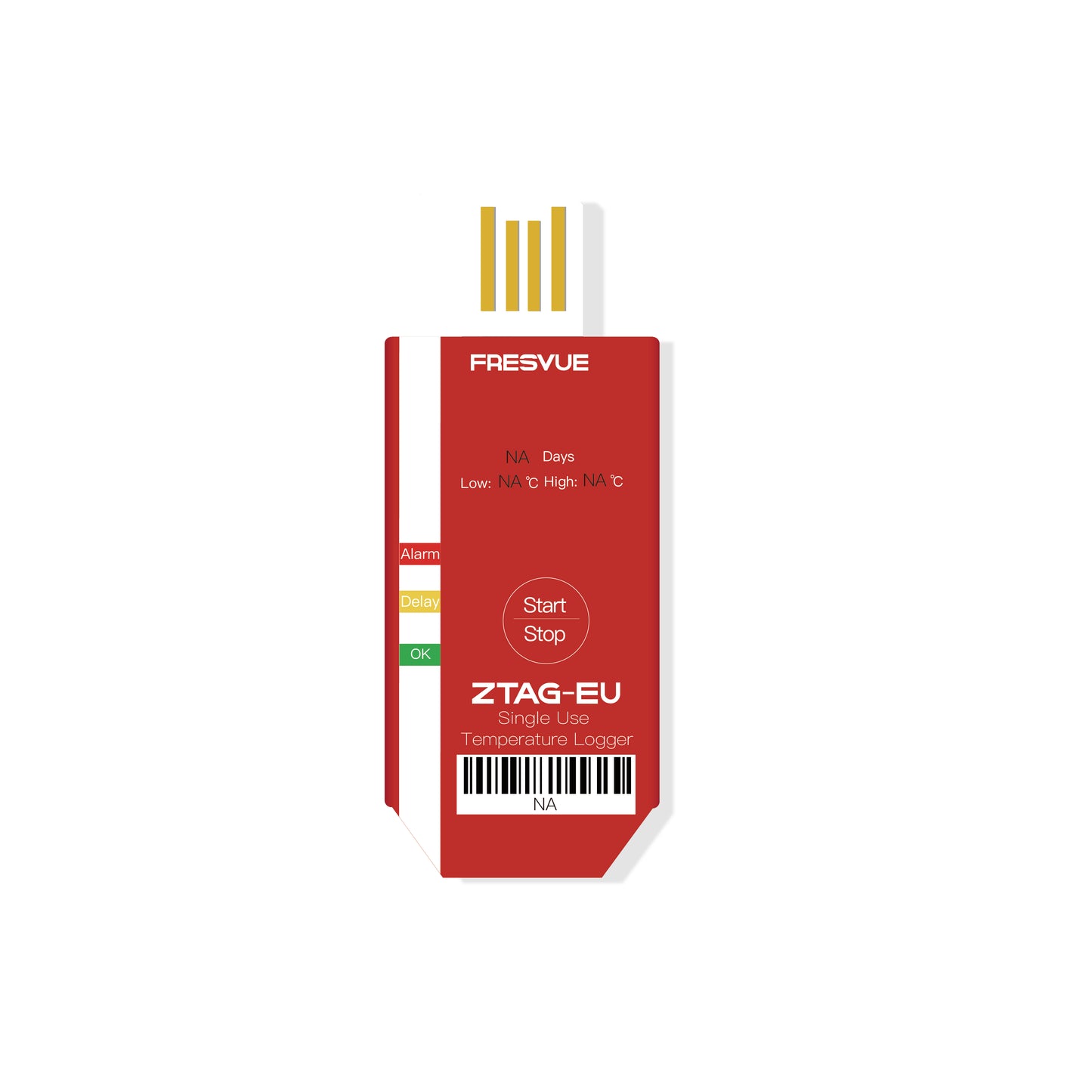

ZTAG-EU Single-use temperature data logger (MOQ 100)
ZTAG-EU Single-use temperature data logger (MOQ 100)
Couldn't load pickup availability
Our cost-effective data loggers are encased in food-grade composite packaging, ensuring they are entirely waterproof. Simple one-click activation allows for immediate placement in any environment to track temperature sensitive goods like perishables and pharmaceuticals. These versatile devices are ideal for use across the entire cold chain, including refrigerated containers, trucks, cold storage facilities, and laboratories.
Single-Use Temperature Data Logger

Drive-free encryption report
Our loggers feature software-free reporting with built-in encryption. Simply plug the device into a computer at the end of the trip to instantly access an unalterable, authoritative PDF. This ensures a secure, tamper-proof audit trail for the entire journey's temperature data.

Food grade composite bag
Encased in a food-grade, hermetically sealed composite sleeve, the unit boasts an IP67 waterproof rating. This ensures the logger can be safely packed directly alongside fresh produce or pharmaceuticals, safeguarding the device and ensuring the integrity and objectivity of your temperature data throughout the journey.

One-Touch Activation for Seamless Operation
Our loggers come fully pre-configured to your specific requirements before dispatch. This 'plug-and-play' approach allows your team to initiate recording with a single button press, eliminating the need for complex setup and significantly reducing the risk of manual configuration errors.

Certified for In-Flight Use
Our loggers fully comply with RTCA/DO-160G standards, meeting the rigorous environmental and testing requirements for airborne equipment. They are officially qualified for air freight in an active state, ensuring continuous monitoring without violating aviation safety protocols.

Technical Specifications
| LED indicator | Green(Recording,OK),Red(Alarm),Yellow(Start Delay) |
| battery life | Up to 2 years(1 year storage / 1 year useful life)@25℃,5 minutes logging interval |
| Measurement range | -30 ℃ ~ 70 ℃ |
| measurement accuracy | ± 0.5°C @-10~40°C, ± 0.8°C @-30 ~-10°C & 40~70°C |
| resolution | 0.1°C |
| alarm point | can set high and low 2 alarm points (alarm threshold and over-temperature trigger time can be customized according to customer needs) |
| recording interval | 1 minute -24 hours (can be factory configuration) default 10 minutes |
| storage capacity | Up to 33,000 points@Single PDF/CSV report,25,000 Points @PDF&CSV report |
| startup delay | 0 minutes -24 hours (can be configured before factory) default 15 minutes |
| Start Mode | Manual Start |
| Report Format | PDF/CSV/PDF & CSV (optional, factory configured) |
| Battery Type | 3.0V CR2450 |
| Connection Mode | USB2.0 |
| Product Size | 70*34*7mm |
| Product Weight | 23g |
| Certification | CE,EN12830:2018,RTCA/DO-160G (Aviation Safety Directive),RoHS |
